Garrett PowerMax™ Stage 2 Turbos for 2017-2021 Ford F-150 Raptor 3.5L

Garrett
SKU:
901654-5001W
Availability:
PRE-ORDER: Typically available within 2-4 weeks
$2,999.99
Condition:
New
Current Stock:
Adding to cart… The item has been added

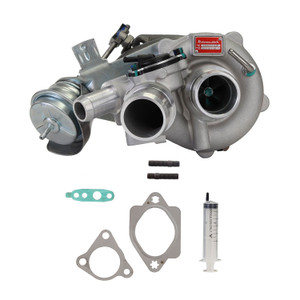

The Garrett PowerMax™ Stage 2 turbocharger upgrade for the 2017-2021 F-150 and F-150 Raptor 3.5L Ecoboost platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.

Features:

  • Direct-fit Stage 2 Upgrade (Both LH & RH Turbos)
  • Compressor housing inlet (2.75") is larger than stock to allow for increased flow and optimized surge port
  • Adapter for stock inlet tube included with turbo kit
  • Turbo model: GT2260S
  • 700+ BHP capability
  • Complete assembly with calibrated electric actuator
  • Billet compressor wheel with 54% increased flow
  • Inconel turbine wheel with 52% increased flow
  • Modern compressor and turbine wheel aero
  • Tuned ported shroud for optimal compressor surge and choke performance
  • Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit)
  • Journal-bearing rotating group

Specifications:

  • Left Turbocharger:
    • Turbo PN: 901654-5001W
    • Bearing: Journal
    • Rotation: Standard
    • Acuation: Electric
    • Compressor:
      • Inducer: 45mm
      • Exducer: 60mm
      • Trim: 57
      • A/R: 0.60
    • Turbine:
      • Inducer: 50mm
      • Exducer: 46mm
      • Trim: 84
  • Right Turbocharger:
    • Turbo PN: 901655-5001W
    • Bearing: Journal
    • Rotation: Reverse
    • Acuation: Electric
    • Compressor:
      • Inducer: 45mm
      • Exducer: 60mm
      • Trim: 57
      • A/R: 0.60
    • Turbine:
      • Inducer: 50mm
      • Exducer: 46mm
      • Trim: 84

Fitment:

  • 2017-2021 Ford F-150 3.5L Ecoboost
  • 2017-2021 Ford F-150 Raptor 3.5L Ecoboost



This product is subject to EPA regulations and is not automatically approved for street use. It is the vehicle owner's responsibility to ensure EPA regulation conformance. Installation of this turbocharger kit may affect vehicle’s safety, warranty, and operating license. For details, contact the vehicle’s manufacturer.

*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
